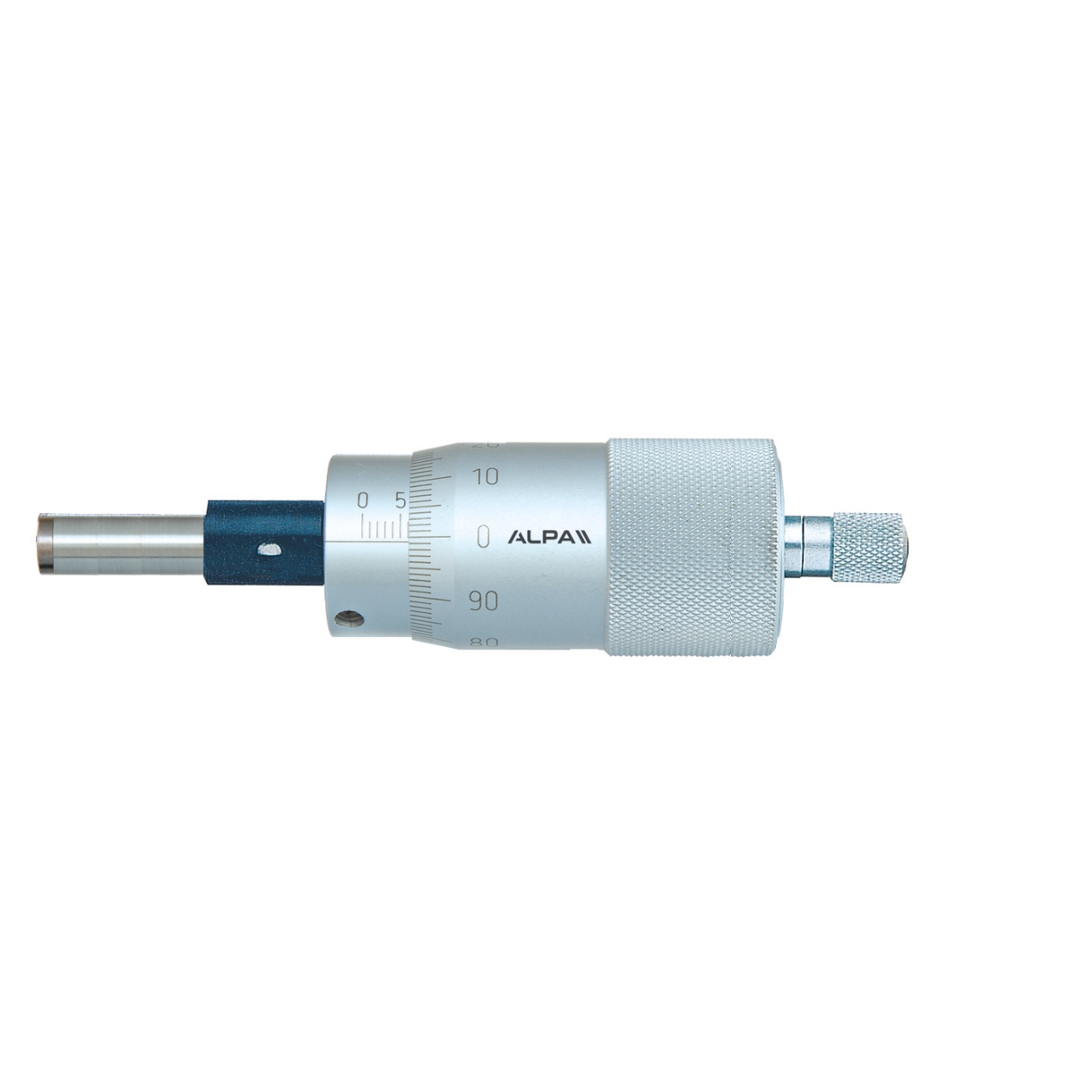

Micrometer head 0-25 mm travel 1 mm screw pitch ALPA BB180

Micrometer head 0-25 mm travel 1 mm screw pitch ALPA BB180

Category: SKU: BB180
Characteristics
  • Resolution 0.01 mm, spindle ø 8mm. Thread pitch 1mm, thimble ø 29 mm.
Request information

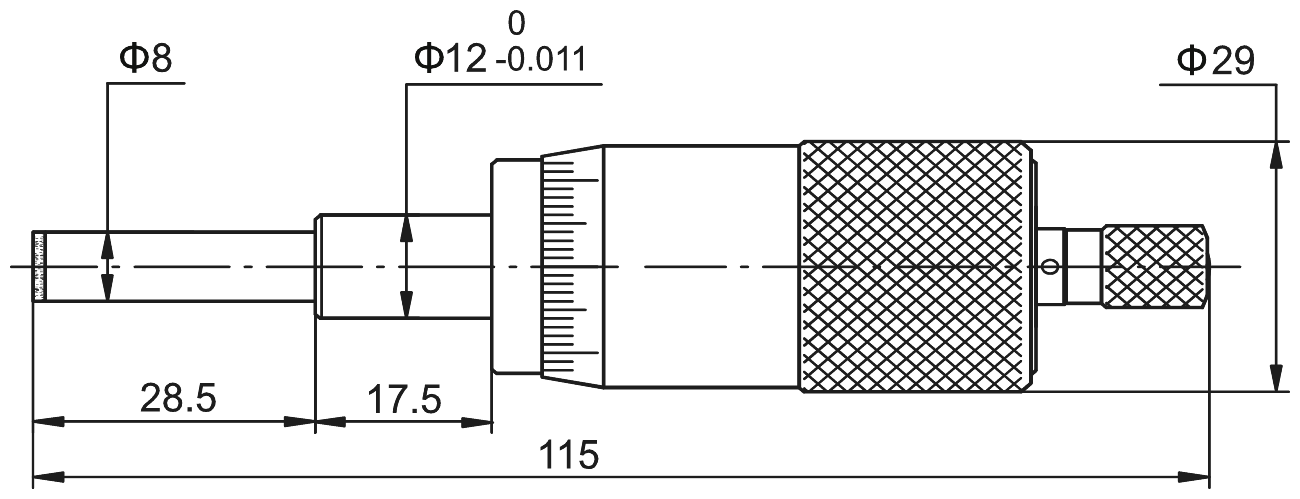

Drawings
Variations
Code
Range mm
Resolution mm
Accuracy mm
Spindle Ø mm
L2 mm
L1 mm
D1 mm
Contact
Type
BB180A
Range mm
0 ÷ 25
Resolution mm
0,01
Accuracy mm
± 0,004
Spindle Ø mm
8
L2 mm
28,5
L1 mm
115
D1 mm
29
Contact
1A
Type
1B
