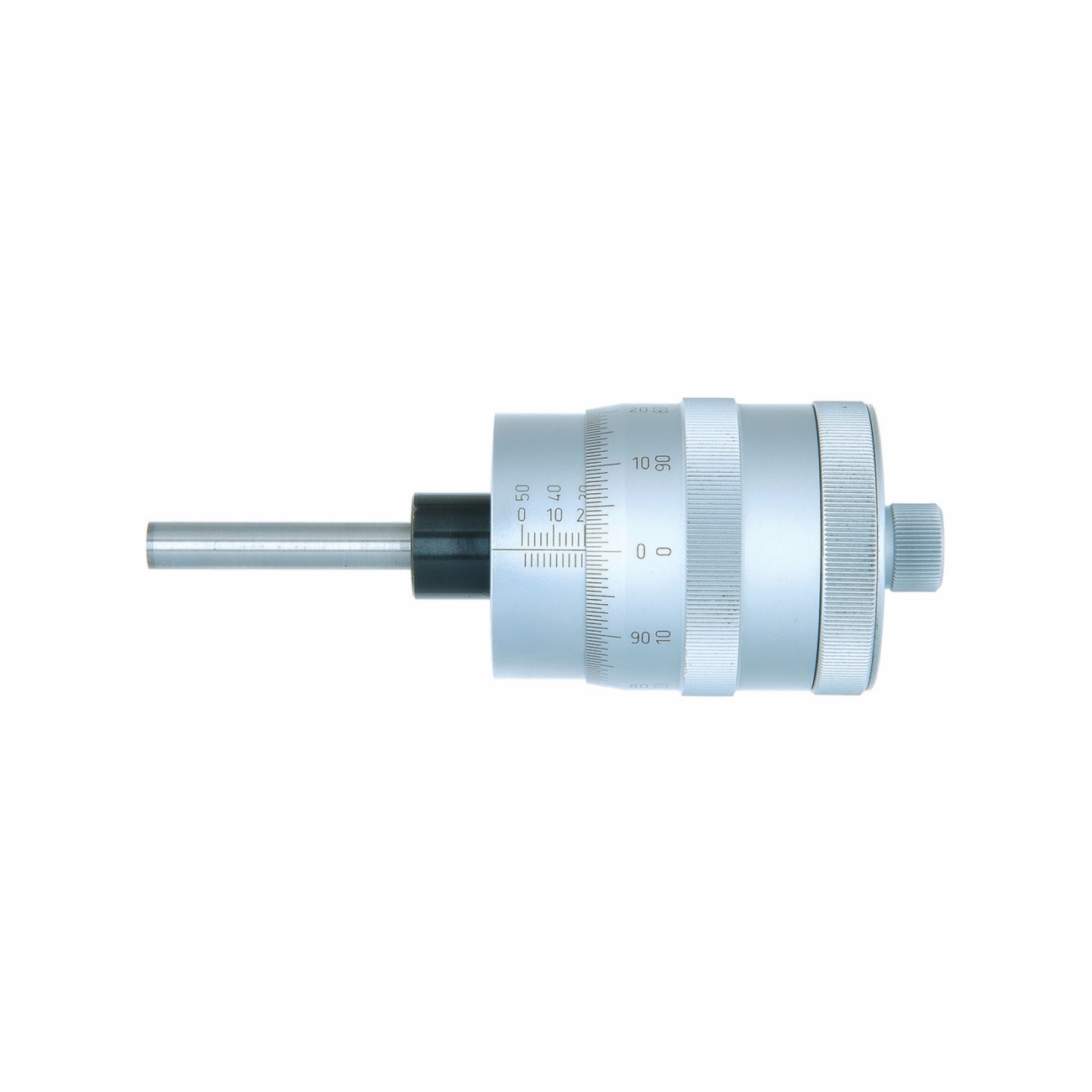

Micrometer head 0-50 mm stroke ALPA

Micrometer head 0-50 mm stroke ALPA

Category: SKU: BB225
Characteristics
  • Resolution 0.005 mm for high reading resolution
  • Screw pitch 1 mm
  • Non-rotating stem with flat measuring face and carbide coating
Request information
Drawings
Variations
Code
Range mm
Contact
Head
Resolution mm
Accuracy mm
Ø mm
L2 mm
L1 mm
D1 mm
BB22550
Range mm
0 ÷ 50
Contact
Plate
Head
Non-rotating stem
Resolution mm
0,005
Accuracy mm
± 0,005
Ø mm
8
L2 mm
6,5
L1 mm
145,5
D1 mm
49
