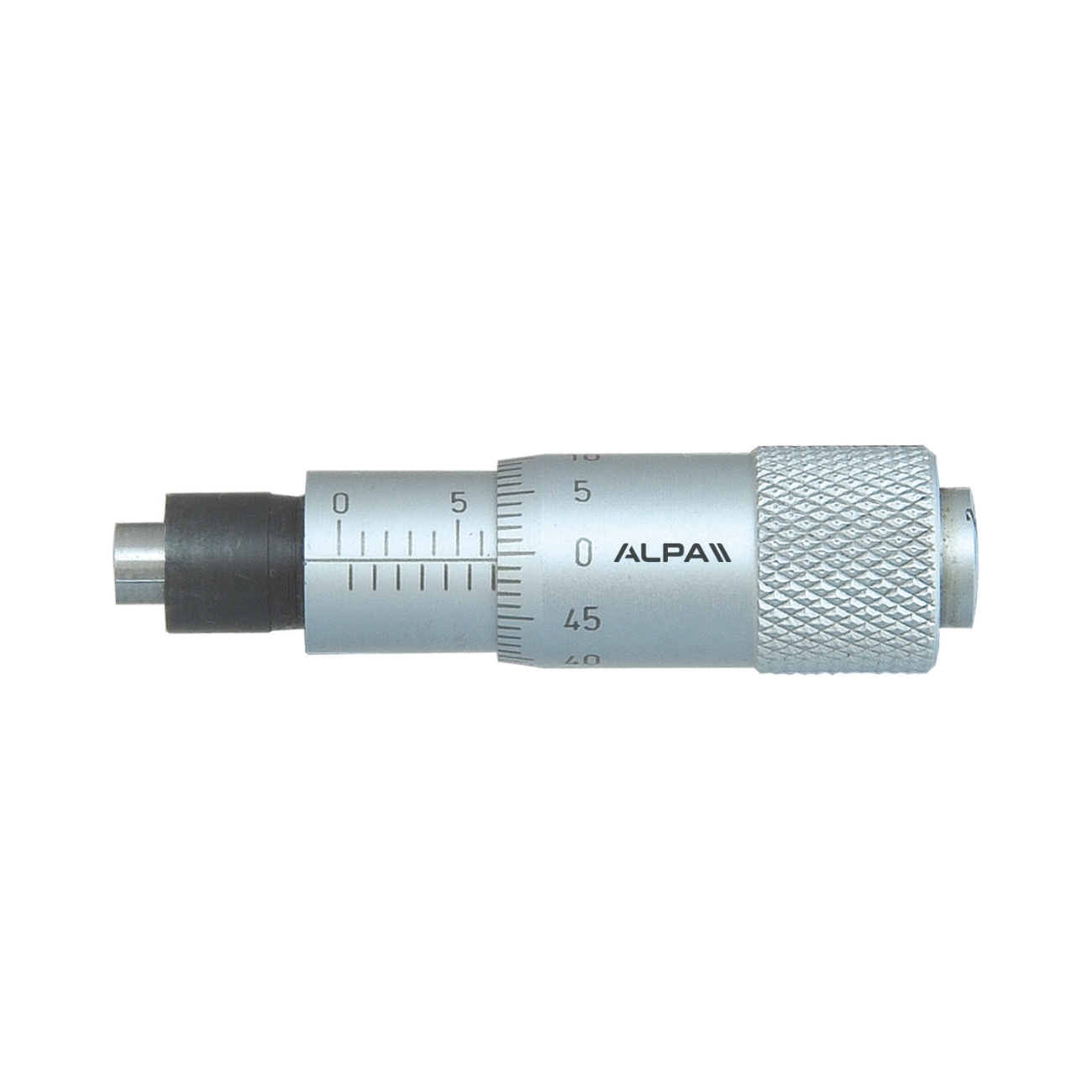

Micrometer head 0-6.5 mm travel ALPA BB130
Characteristics- Resolution 0.01 mm, thimble ø 9.4 mm, spindle ø 3.5 mm, thread pitch 0.5 mm. Accuracy according to internal standard.
Drawings
Variations
Code
Range mm
Resolution mm
Contact
Accuracy mm
Ø mm
L2 mm
L1 mm
D1 mm
Head
BB130A
Range mm
0 ÷ 6,5
Resolution mm
0,01
Contact
Plate
Accuracy mm
± 0,005
Ø mm
35
L2 mm
7,5
L1 mm
37
D1 mm
9,4
Head
Semplice
BB130B
Range mm
0 ÷ 6,5
Resolution mm
0,01
Contact
Sferico
Accuracy mm
± 0,005
Ø mm
35
L2 mm
7,5
L1 mm
37
D1 mm
9,4
Head
Semplice
BB130C
Range mm
0 ÷ 6,5
Resolution mm
0,01
Contact
Plate
Accuracy mm
± 0,005
Ø mm
35
L2 mm
7,5
L1 mm
37
D1 mm
9,4
Head
Con vite di bloccaggio
BB130D
Range mm
0 ÷ 6,5
Resolution mm
0,01
Contact
Sferico
Accuracy mm
± 0,005
Ø mm
35
L2 mm
7,5
L1 mm
37
D1 mm
9,4
Head
Con vite di bloccaggio
