Micrometer with counter ALPA BB010

Category: SKU: BB010
Characteristics
  • Resolution 0,01 mm.
    Painted frame, mechanical digit counter for quick reading. HM contact surfaces.
Description

– HM contact surfaces
– Spindle ø 6.5 mm
– Resolution 0.01 mm

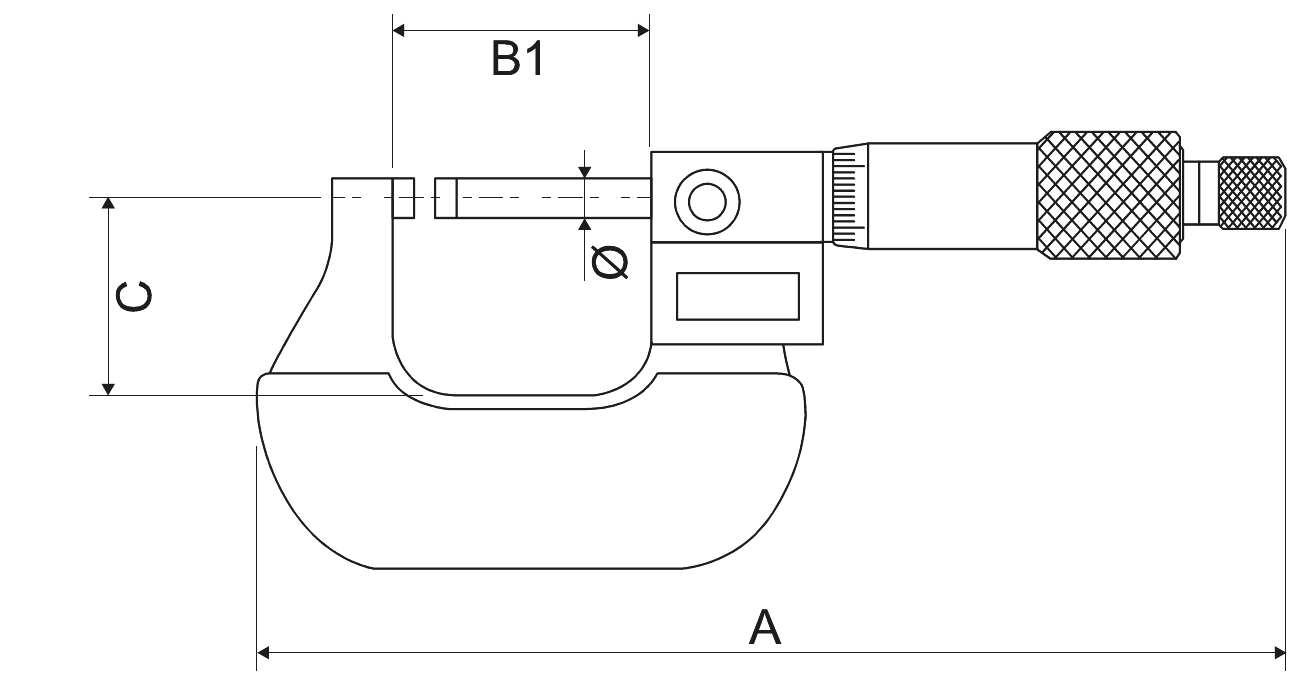

Drawings
Variations
Code
Range mm
Accuracy mm
A mm
C mm
BB01025
Range mm
0 ÷ 25
Accuracy mm
± 0,004
A mm
32
C mm
26
BB01050
Range mm
25 ÷ 50
Accuracy mm
± 0,004
A mm
57
C mm
32
BB01075
Range mm
50 ÷ 75
Accuracy mm
± 0,005
A mm
82
C mm
44,5
BB010100
Range mm
75 ÷ 100
Accuracy mm
± 0,005
A mm
107
C mm
57
