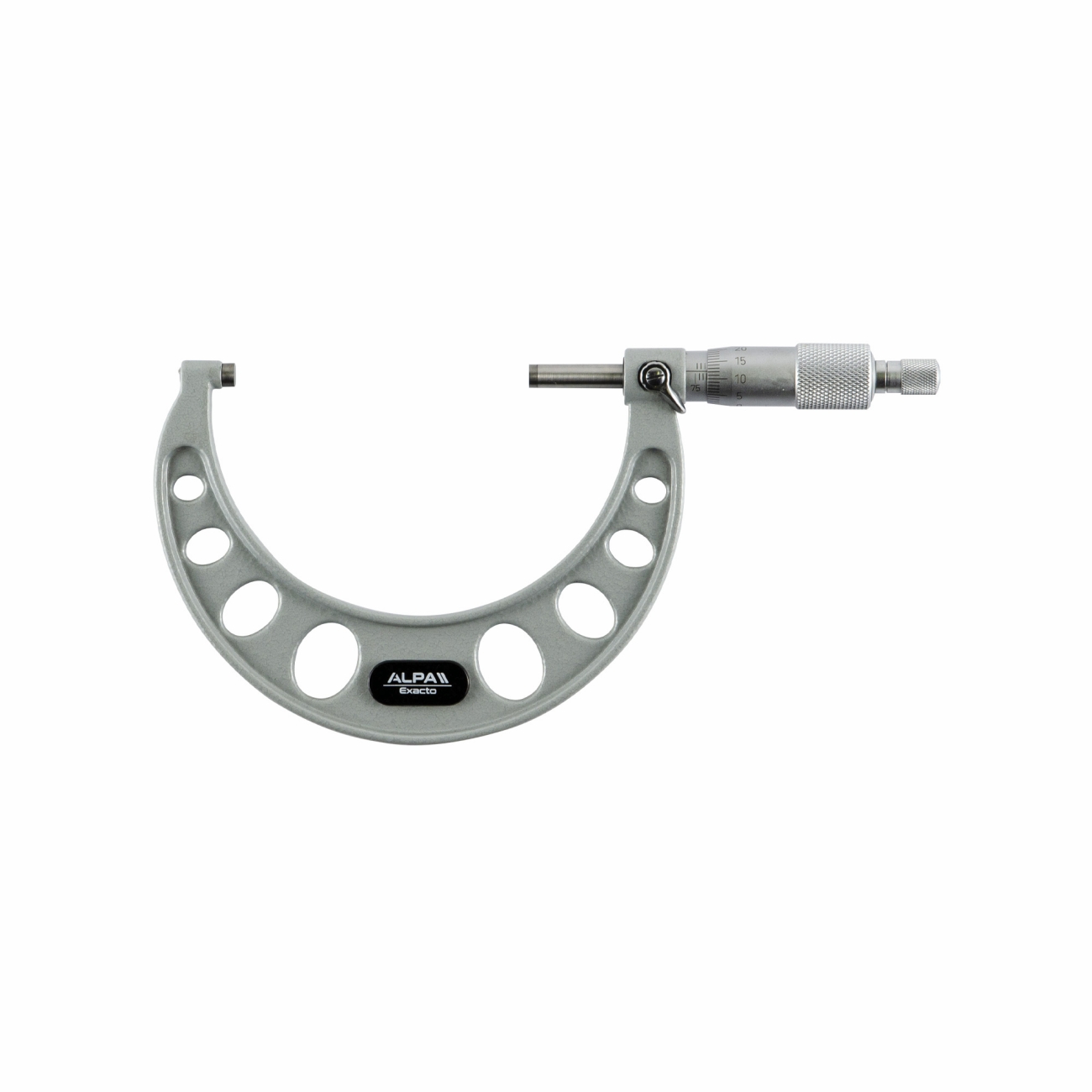

Micrometro centesimale per esterni ALPA BB015
Characteristics- Resolution 0,01 mm.
Painted frame. HM contact surfaces.
Description
– HM contact surfaces
– Spindle ø 6.5 mm
– Resolution 0.01 mm
Drawings
Variations
Code
Range mm
Accuracy mm
A mm
B mm
C mm
D mm
BB01525
Range mm
0 ÷ 25
Accuracy mm
± 0,004
A mm
32
B mm
9
C mm
28
D mm
3
BB01550
Range mm
25 ÷ 50
Accuracy mm
± 0,004
A mm
57
B mm
14
C mm
38
D mm
3
BB01575
Range mm
50 ÷ 75
Accuracy mm
± 0,005
A mm
82
B mm
15
C mm
49
D mm
3
BB015100
Range mm
75 ÷ 100
Accuracy mm
± 0,005
A mm
107
B mm
15
C mm
60
D mm
3
BB015125
Range mm
100 ÷ 125
Accuracy mm
± 0,006
A mm
133
B mm
16,5
C mm
73
D mm
3
BB015150
Range mm
125 ÷ 150
Accuracy mm
± 0,006
A mm
158
B mm
16,5
C mm
85
D mm
3
BB015175
Range mm
150 ÷ 175
Accuracy mm
± 0,007
A mm
183
B mm
19,4
C mm
104
D mm
3
BB015200
Range mm
175 ÷ 200
Accuracy mm
± 0,007
A mm
209
B mm
19,4
C mm
117
D mm
3
BB015225
Range mm
200 ÷ 225
Accuracy mm
± 0,008
A mm
234
B mm
19,4
C mm
130
D mm
3
BB015250
Range mm
225 ÷ 250
Accuracy mm
± 0,008
A mm
260
B mm
19,4
C mm
142
D mm
3
BB015275
Range mm
250 ÷ 275
Accuracy mm
± 0,009
A mm
285
B mm
19,4
C mm
15,5
D mm
3
BB015300
Range mm
275 ÷ 300
Accuracy mm
± 0,009
A mm
310
B mm
19,4
C mm
168
D mm
3
