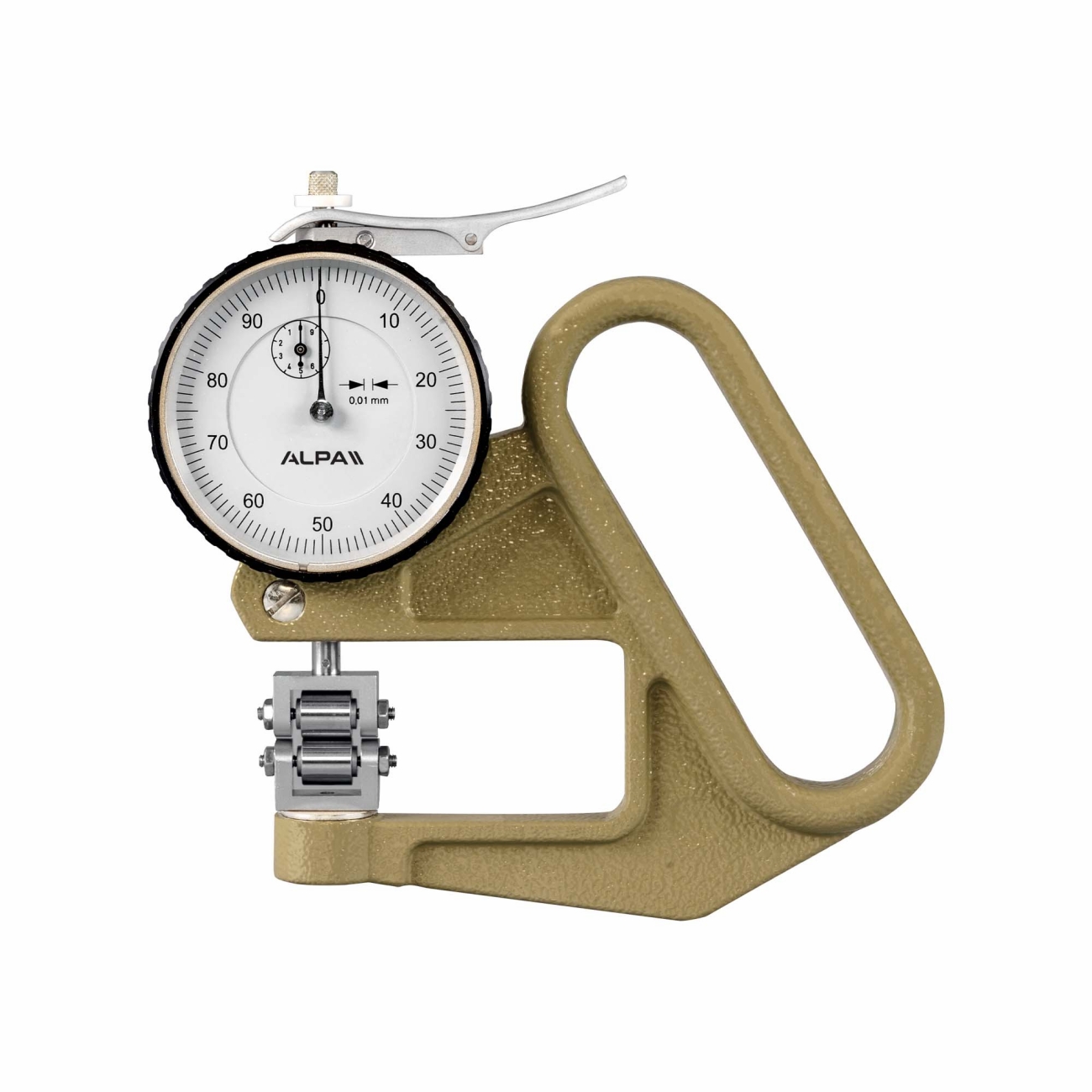

Special analogue feeler gauge ALPA
Characteristics- One-piece light alloy construction
- Dial gauge movement mounted on taps
- Supplied standard with form C probe
- Model with pair of roller contacts Ø 8.4 mm
- Width 8.7 mm
- Rollers mounted on precision ball bearings
- Ideal for continuous measurement
Drawings
Variations
Code
Range mm
Resolution mm
Arch mm
Accuracy mm
BB380TA
Range mm
Resolution mm
Arch mm
Accuracy mm
BB380TB
Range mm
Resolution mm
Arch mm
Accuracy mm
BB380TC
Range mm
Resolution mm
Arch mm
Accuracy mm
BB380TD
Range mm
Resolution mm
Arch mm
Accuracy mm
BB380TE
Range mm
Resolution mm
Arch mm
Accuracy mm
BB3800120
Range mm
0 ÷ 10
Resolution mm
0,01
Arch mm
20
Accuracy mm
±0,02
BB3800150
Range mm
0 ÷ 5
Resolution mm
0,01
Arch mm
50
Accuracy mm
±0,02
BB38001100
Range mm
0 ÷ 10
Resolution mm
0,01
Arch mm
100
Accuracy mm
±0,02
BB38001200
Range mm
0 ÷ 10
Resolution mm
0,01
Arch mm
200
Accuracy mm
±0,03
BB38010200
Range mm
0 ÷ 30
Resolution mm
0,1
Arch mm
200
Accuracy mm
±0,01
BB38010300
Range mm
0 ÷ 30
Resolution mm
0,1
Arch mm
300
Accuracy mm
±0,015
BB38010400
Range mm
0 ÷ 30
Resolution mm
0,1
Arch mm
400
Accuracy mm
±0,02
