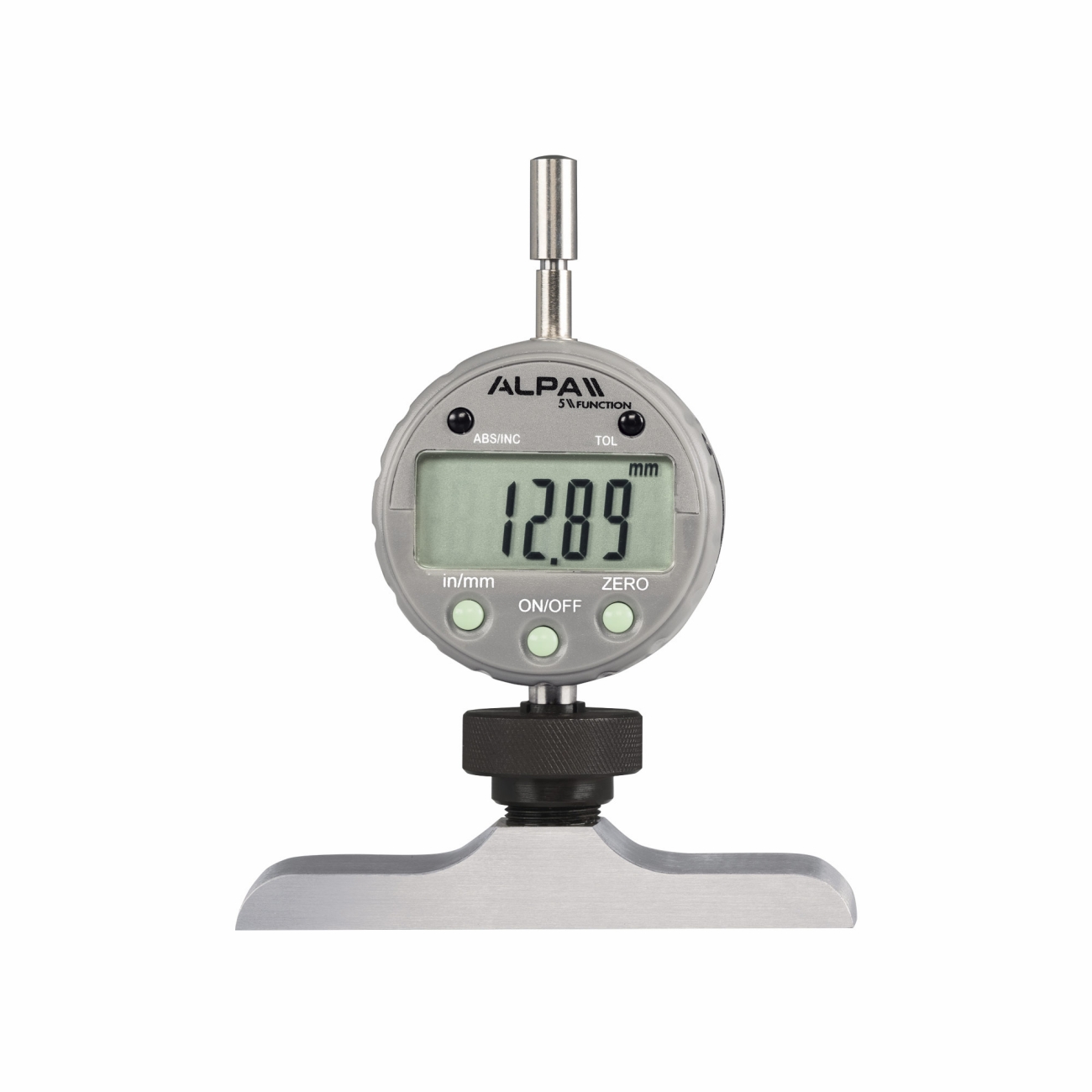

Depth digital dial indicator ALPA BA100
Characteristics- Resolution 0,01 mm.
Hardened and chromed steel, lapped measuring faces. Depth can be increased with extensions. To zero set the instrument it’s now needed a block gauge instead of using directly the base. On request resolution 0,001 mm.
Properties
- ON/OFF:
- Zero:
- ABS:
Drawings
Variations
Code
Range mm
Accuracy mm
A mm
B mm
C mm
BA10010
Range mm
0 ÷ 10
Accuracy mm
± 0,02
A mm
101,5
B mm
37
C mm
17
BA10025
Range mm
0 ÷ 25
Accuracy mm
± 0,03
A mm
101,5
B mm
37
C mm
17
BA10050
Range mm
0 ÷ 50
Accuracy mm
± 0,04
A mm
101,5
B mm
37
C mm
17
