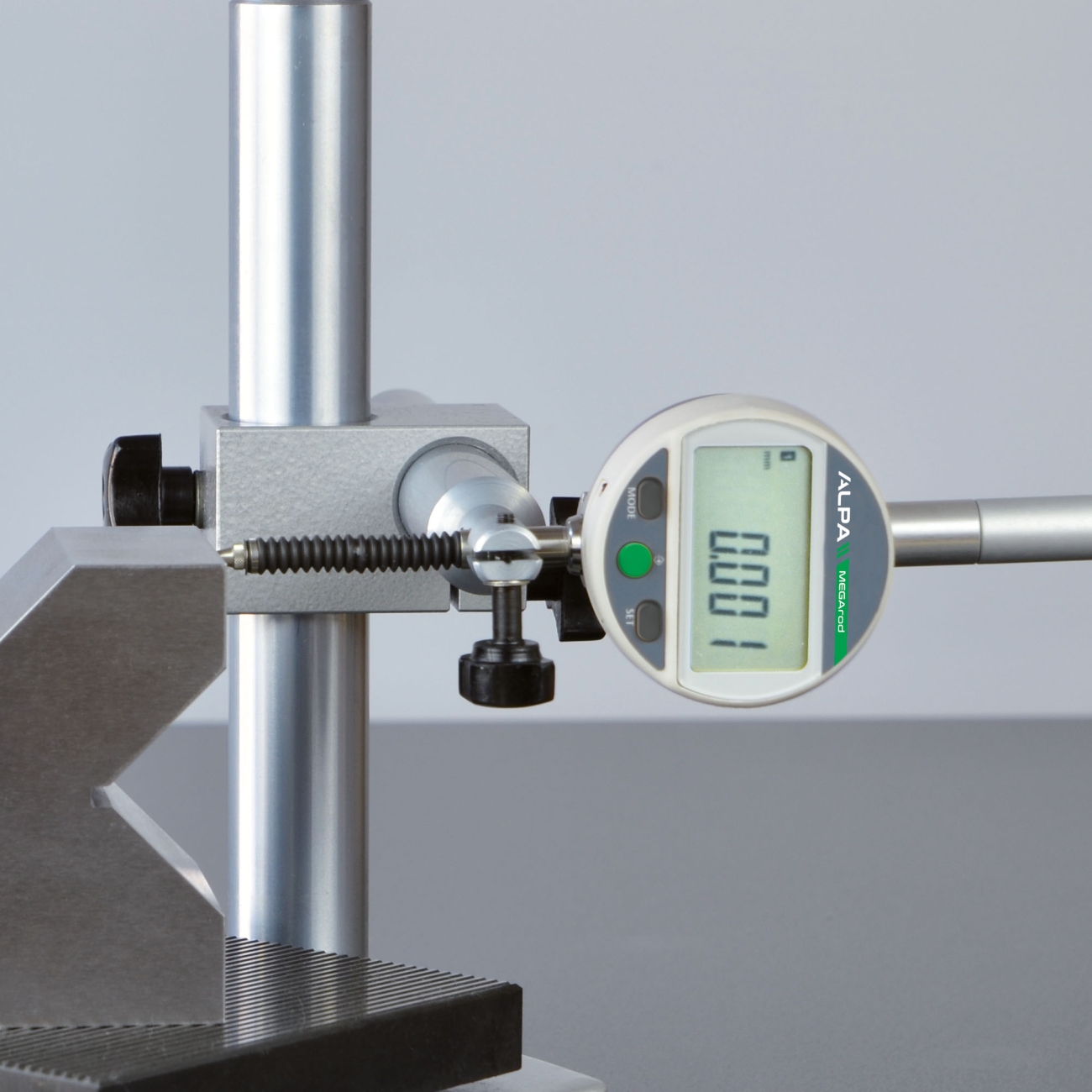

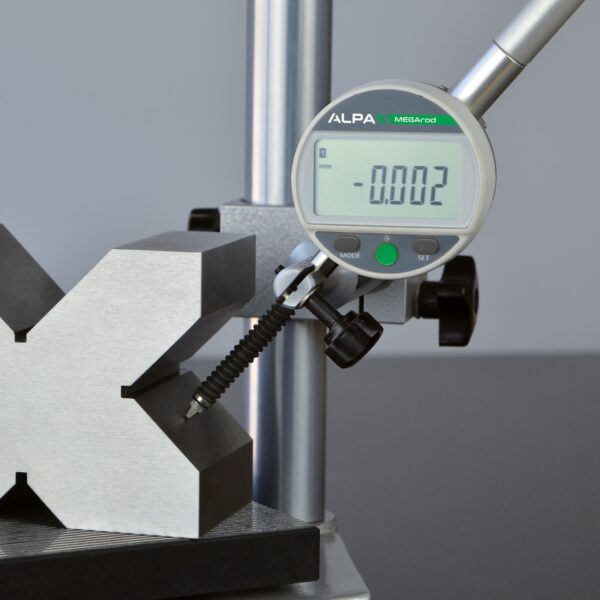

Digital dial gauge IP67 ALPA CA010
Characteristics- Tough construction, water resistant. IP67 protection according to IEC 60529, even connected. Technology with configurable menus. Broad choice of functions (min/max, delta, tol, factor, preset, auto off, ecc.). Automatic wake-up and sleeping mode, absolute system. Fixing and space envelope ø 8 h 6 mm, interchangeable M2,5 probe (DIN878).
Properties
- Repeatability: 2
- Measuring force: 0,65 - 0,9 N 0,65 - 1,15 N 1,25 - 2,7 N
- Slider speed: 1,7
- Display refresh rate: 10 mis/s - min/max: 20 mis/s
- Measuring system: Sylvac inductive system (patented)
- Power supply: 220
- Mean power consumption: 73
- Mean battery life: 8'000
- Working temperature: from + 5° to + 40°C / from + 41° to + 104°F
- ON/OFF:
- Zero:
- ABS:
- Preset:
- Sleep:
- Hold:
Drawings
Variations
Code
Range mm
Resolution mm
Accuracy μm
A mm
B mm
C mm
CA01012,5
Range mm
0 ÷ 12,5
Resolution mm
0,001
A mm
59,6
B mm
78,4
C mm
36,6
90
Accuracy μm
CA01025
Range mm
0 ÷ 25
Resolution mm
0,001
A mm
85,4
B mm
100,2
C mm
49,4
94
Accuracy μm
± 4
CA01050
Range mm
0 ÷ 50
Resolution mm
0,001
A mm
104,4
B mm
175,4
C mm
-
175
Accuracy μm
± 5
