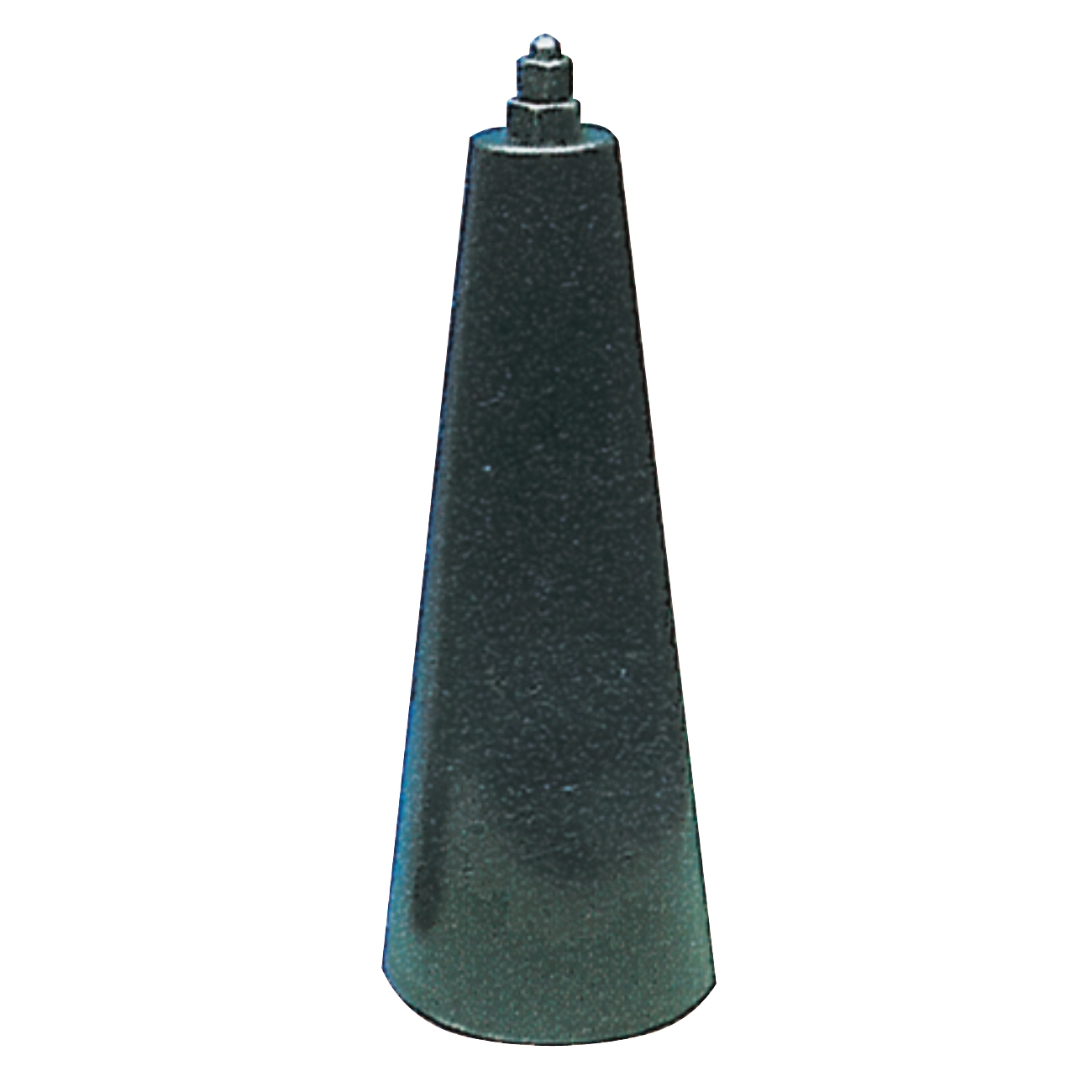

Columns for cast iron surface plates ALPA HA030

Columns for cast iron surface plates ALPA HA030

Category: SKU: HA030
Characteristics
  • G26 stabilized cast iron fusion, height adjustment by using micrometric screw. Truncated-Conical structure with support surface.
Request information
Variations
Code
Base dimensions mm
Height mm
Adjustable height mm
HA0301713
Base dimensions mm
170
Height mm
130
Adjustable height mm
200 - 300
HA0302255
Base dimensions mm
220
Height mm
550
Adjustable height mm
650 - 860
HA0302730
Base dimensions mm
270
Height mm
300
Adjustable height mm
390 - 570
HA0303040
Base dimensions mm
300
Height mm
400
Adjustable height mm
500 - 700
HA0303050
Base dimensions mm
300
Height mm
500
Adjustable height mm
600 - 800
HA0303720
Base dimensions mm
370
Height mm
200
Adjustable height mm
300 - 450
