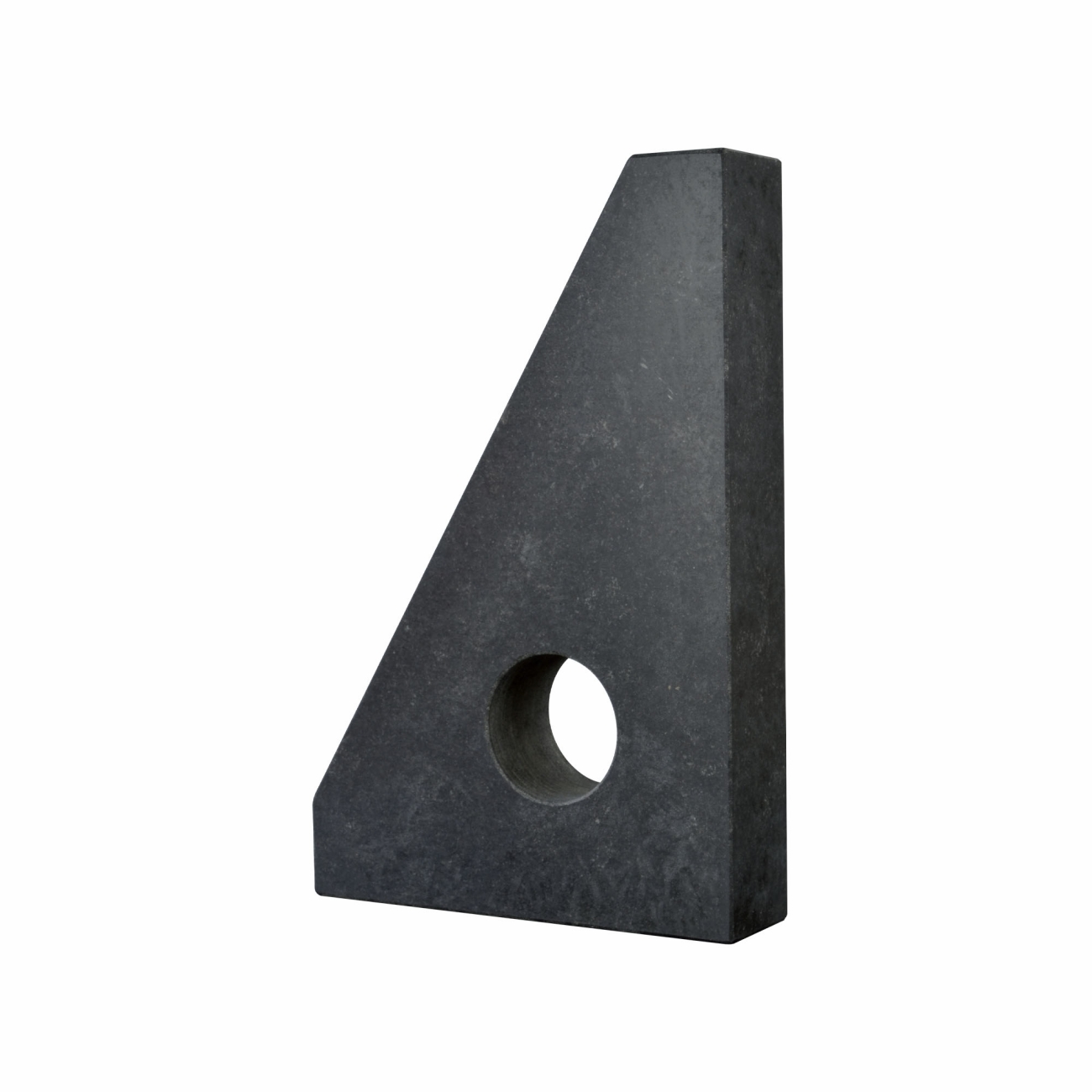

Black granite control square ALPA

Category: SKU: HA140
Characteristics
  • Suitable for perpendicularity checks
  • Manufactured to very tight tolerances and with stable support
  • Relief holes are drilled in the large squares
  • Surfaces are lapped
  • Grade “00” finish with accuracies as per table
  • Available in absolute black diabase on request
Variations
Code
Dimensions mm
Flatness µm
Accuracy mm
Perpendicularity µm
HA140300
Dimensions mm
300 x 200 x 60
Flatness µm
2-5
Accuracy mm
± 0,0016
Perpendicularity µm
2-5
6
HA140400
Dimensions mm
400 x 250 x 80
Flatness µm
32-5
Accuracy mm
± 0,0018
Perpendicularity µm
3
10
HA140500
Dimensions mm
500 x 300 x 60
Flatness µm
32-5
Accuracy mm
± 0,002
Perpendicularity µm
3-5
20
HA140630
Dimensions mm
630 x 400 x 80
Flatness µm
3
Accuracy mm
± 0,0023
Perpendicularity µm
4
35
HA1401000
Dimensions mm
1000 x 630 x 90
Flatness µm
4-3
Accuracy mm
± 0,0026
Perpendicularity µm
6
120
